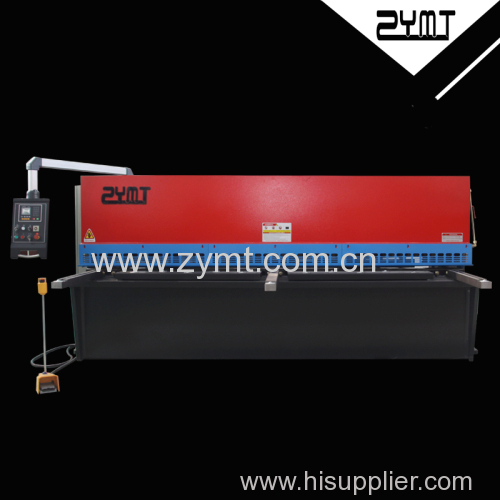

shearing machine metal shearing machine hydraulic shearing machine

Price: 9200.0 USD
Payment Terms: T/T,L/C
Place of Origin: Anhui, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: QC12K-6×3200
Production Capacity: 3000sets/Year
Delivery Date: 30days
Raw Material: Steel Bar
Extra Services: Machining
Certification: CE
Brand Name: ZYMT
controller: Estun E21S
main motor: Germany Siemens
hydraulic valve: Germany Rexroth
ball screw: Taiwan Hiwin
specification: CE, ISO, SGS
Means of Transport: Ocean,Ocean
Packing: Plastic Cover
Power: Hydraulic
Machine Type: Others
Automation: Automatic
Material / Metal Processed: Carbon Steel
product name: Hydraulic Metal Shearing Ma...
material: weld steel
electrics: France Schneider
seal ring: Japan NOK
pipe connector: Germany EMB

The machine is fitted with CNC controller special for shearing machines.

Hydraulic Metal Shearing Machine:


Features:

1.The machine is fitted with CNC controller special for shearing machines.

2.The position of rear stopper is displayed in real-time manner.

3.Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.

4.It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.

5.Back gauge with precision ball screw and liner guide, to ensure the positioning precision, so that bring the higher precision processing.


Main equipments:

No.

Parts Name

Brand

Brand Location

1

Main motor

Siemens

Germany

2

Backgauge motor

Jiahuang

Hangzhou China

3

Electrics

Schneider

France

4

Oil Cylinder

Yuhua

Maanshan China

5

Seal ring

Nok

Japan

6

Hydraulic valve

Rexroth

Germany

7

Pump

Hangfa

Shanghai China

8

Controller

E21S

Nanjing China

9

Blades

Jinshan

Shanghai China

10

Pipe connector

EMB

Germany

11

Footswitch

Karcon

South Korea

12

Ball screw

Hiwin

Taiwan

13

Controller with moveable arm

YES

14

Front and back protection   fence

YES

15

Backgauge with ball screw

YES

16

Backgauge travel

600MM

17

Shadow line light

YES

18

Emergency button

YES


Technical Parameters:

Type

Cutting

Thickness

(mm)

Cutting Length(mm)

Cutting Angle(°)

Material Strength

(KN/CM)

Stroke (times/min)

Power(kw)

Weight(kg)

Dimension(mm)

4×2500

4

2500

1°30'

≤450

10

5.5

3800

3040*1610*1620

4×3200

4

3200

1°30'

≤450

10

5.5

5000

3840*1610*1620

4×4000

4

4000

1°30'

≤450

8

5.5

6500

4600*1700*1700

4×6000

4

6000

1°30'

≤450

5

7.5

11000

6460*2100*3200

6×2500

6

2500

1°30'

≤450

10

7.5

5000

3040*1610*1620

6×3200

6

3200

1°30'

≤450

9

7.5

6000

3840*1610*1620

6×4000

6

4000

1°30'

≤450

8

7.5

8000

4620*1750*1700

6×5000

6

5000

1°30'

≤450

6

7.5

10500

5400*1750*1700

6×6000

6

6000

1°30'

≤450

5

11

16500

6480*2100*2300

8×2500

8

2500

1°30'

≤450

10

7.5

6000

3040*1700*1700

8×3200

8

3200

1°30'

≤450

8

7.5

7200

3860*1700*1700

8×4000

8

4000

1°30'

≤450

8

7.5

8800

4640*1700*1700

8×5000

8

5000

1°30'

≤450

8

7.5

11500

5400*2400*2000

8×6000

8

6000

1°30'

≤450

8

11

18000

6480*2100*2350

10×2500

10

2500

1°30'

≤450

9

11

7300

3040*1700*1700

10×3200

10

3200

1°30'

≤450

9

11

8000

3860*1700*1700

10×4000

10

4000

1°30'

≤450

8

11

12000

4650*2100*2000

10×6000

10

6000

≤450

5

15

24000

6500*2100*2300

12×2500

12

2500

≤450

9

18.5

9000

3140*2150*2000

12×3200

12

3200

≤450

9

18.5

10800

3880*2150*2000

12×4000

12

4000

≤450

8

18.5

13000

4680*2150*2000

12×5000

12

5000

≤450

6

18.5

16000

5900*2150*2000

12×6000

12

6000

≤450

5

18.5

29000

6900*2600*2700

12×8000

12

8000

≤450

5

18.5

46500

9000*3500*3500

16×2500

16

2500

2°30'

≤450

9

18.5

11000

3140*2150*2000

16×3200

16

3200

2°30'

≤450

8

18.5

13000

3880*2150*2000

16×4000

16

4000

2°30'

≤450

8

18.5

16300

4650*2150*2200

16×5000

16

5000

2°30'

≤450

6

18.5

20000

5900*2600*2700

16×6000

16

6000

2°30'

≤450

5

22

36000

6900*2700*2700

20×2500

20

2500

≤450

8

22

15500

3440*2300*2500

20×3200

20

3200

≤450

8

22

18000

4150*2350*2700

20×4000

20

4000

≤450

5

22

21000

4850*2350*2700

25×2500

25

2500

≤450

8

37

19000

3200*2700*2900

25×3200

25

3200

≤450

5

37

23000

4200*2700*2900

25×4000

25

4000

≤450

5

37

27000

3850*2700*2900

30×2500

30

2500

≤450

5

37

23500

3300*2900*2900

30×3200

30

3200

≤450

5

37

27500

4200*2900*2900


Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press



Our Services
1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper

and lower tools. Our tools offer solutions to your application cases - even for

complex technical ones.
2.Service package
Basic:we offer you rapid troubleshooting through telephone support and costs for

on-site missions are reduced.
Special:Engineers available to service machinery overseas for the necessary maintenance.
Partner:Our located dealers or customers who sell or use our machines are fully behind you,

they are our friendly partner and supply good advice to you.

3.Technical Service(After-sale service
